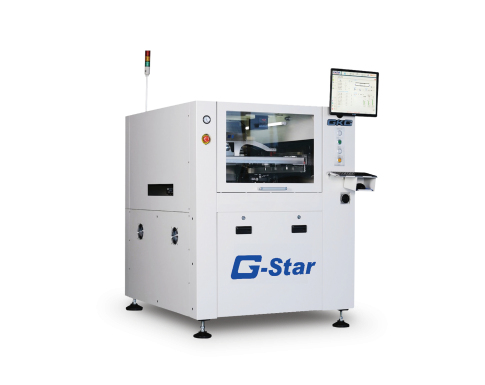

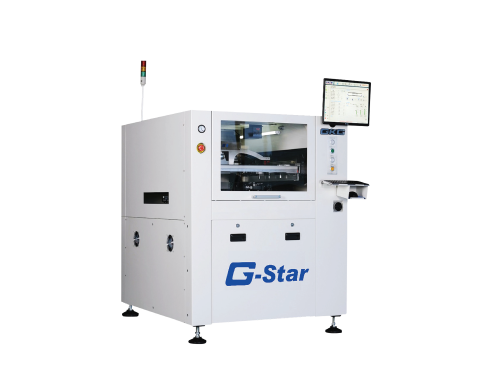

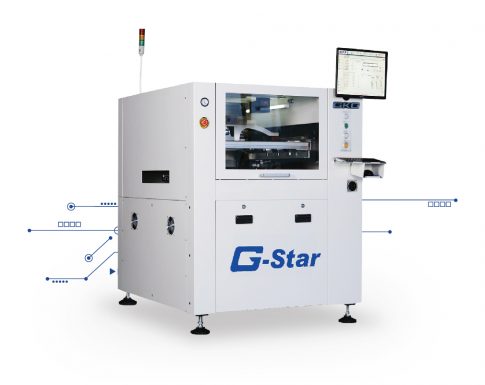

G-Star
Brand :
,
Compact Yet Comprehensive
Designed for handling M-size boards, the G-Star is well-equipped to meet a wide range of production needs. It achieves precise printing down to 01005 miniature printing. Featuring full stencil contact, the enhanced cleaning system effectively removes any residual paste from the mesh before each print cycle, ensuring consistent and high-quality results.
The 2D paste inspection function enables the detection of defects such as insufficient solder paste, bridging, and other printing issues. G-Star is also equipped with manually activated top clamp and motorized side clamps, ensuring stable board fixation and superior printing quality.
| Performance | |
| Machine Alignment Capability | 2Cmk @ ±12.5 microns 6 sigma |
| Process Alignment Capability | 2Cpk @ ±25 microns 6 sigma |
| Core Cycle Time (excluding printing & cleaning time) |
< 8.5 secs |
| Product Changeover Time | < 3 mins |
| New Product Set-up Time | < 10 mins |
| Board Handling | |
| Max. Size (L x W) | 400 mm x 340 mm |
| Min. Size (L x W) | 50 mm x 50 mm |
| Thickness | 0.4~6 mm |
| PCB Thickness Adjustment | Manual (Auto is option. PCB max. width reduced to 310 mm) |
| PCB Max. Weight | 3 kg |
| PCB Edge Clearance | 3 mm |
| PCB Bottom Clearance | 15 mm (7 mm with optional auto PCB thickness adjustment) |
| PCB Warpage | Max. 1% diagonally |
| Clamping Method | Top clamp (manual) and motorized side clamp |
| Support Method | Magnetic support pins, bars, blocks, Vacuum suction |
| Conveyor Direction | L to R, R to L, R to R, L to L (software control) |
| Conveyor Height | 900 ± 40 mm |
| Conveyor Speed | Max. 1,500 mm/s |
| Conveyor Width Adjustment | Automatic |
| OPERATOR INTERFACE | |
| Hardware | LCD Monitor, Mouse & Keyboard |
| Operating System (OS) | Windows 10 |
| Control Method | Industrial PC controlled |
| I/O Interface | SMEMA Standard |
| OPTIONS | |
| Paste Rolling Diameter Monitoring System | |
| Stencil Apertures Inspection System | |
| Auto Table Adjustment for PCB Thickness | |
| SPI Closed-loop | |
| External Barcode Scanner for PCB Traceability | |
| Handheld Barcode Scanner for stencil, solder paste, squeegee traceability |
| PRINTING PARAMETERS | |
| Stencil Frame Size (L X W) | Adjustable, 470 mm x 370 mm to 737 mm x 737 mm |
| Print Gap (snap-off) | 0~20 mm |
| Printing Table Adjustment Range | X: ±3 mm, Y: ±7 mm : ± 2° |
| Print Speed | 6~200 mm/s |
| Squeegee Pressure | 0.5~10kg (program control) |
| Squeegee Type | Std.: Metal , Option: OPC, rubber |
| Squeegee Angle | Std. 60°, Option 45°, 50°, 55° |
| Cleaning System | Auto wet, dry, vacuum (software select) |
| OPTICAL SYSTEM | |
| Field-of-View (FOV) | 8 mm x 6 mm |
| Fiducial Types | Circle, triangle, square, diamond, cross |
| Fiducial size | 0.5~3.0 mm |
| Vision Methodology | CCD camera look up & down |
| 2D inspection | Max.500 windows to inspect missing & insufficient (std.) |
| FACILITIES REQUIREMENT | |
| Power Supply | AC220V ± 10% 50/60Hz |
| Power Consumption | 2.5kW |
| Air Supply | 4 ~ 6Kgf/cm² |
| Dimension (excluding signal tower) | 1,158 mm (L) x 1,362 mm (W) x 1,463 mm (H) |
| Machine Weight | 1,000kg |
