P-Primo
Brand :
,

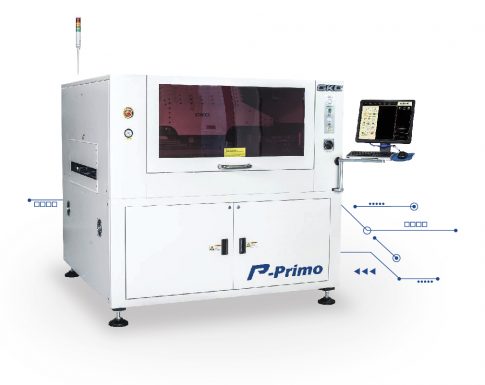

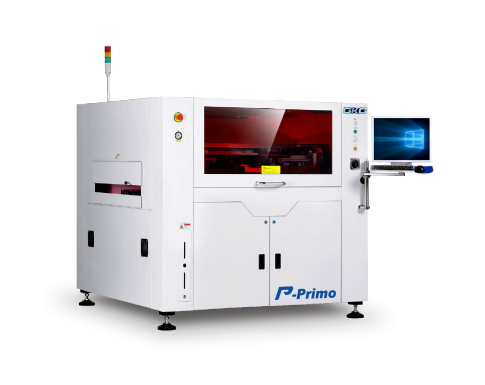

The Large Platform SMT Screen Printer
Catering to customers’ ultra large printing needs, P-Primo is the ideal printer that serves XL size PCB of up to 850mm x 610mm. The 2D paste inspection function is able to detect insufficient paste, bridging and other defects. Like all our other GKG machines, P-Primo undergoes numerous stringent tests to certify its capability.
| Performance | |
| Machine Alignment Capability | 2Cmk @ ±12.5 microns 4 Sigma |
| Process Alignment Capability | 2Cpk @ ±25 microns 4 Sigma |
| Core Cycle Time (excluding printing & cleaning time) |
< 12 secs |
| Product Changeover Time | < 5 mins |
| New Product Set-up Time | < 10 mins |
| Board Handling | |
| Max. Size (L x W) | 850 mm x 610 mm |
| Min. Size (L x W) | 100 mm x 65 mm |
| Thickness | 0.4~8 mm |
| PCB Thickness Adjustment | Automatic |
| PCB Max. Weight | 10 kg |
| PCB Edge Clearance | 3.5 mm |
| PCB Bottom Clearance | 23 mm |
| PCB Warpage | Max. 1% diagonally |
| Clamping Method | Retractable top clamp, motor controlled side clamp |
| Support Method | Magnetic support pins, bars, blocks, vacuum suction |
| Conveyor Direction | L to R, R to L, R to R, L to L (software control) |
| Conveyor Height | 900 ± 40 mm |
| Conveyor Speed | Max. 1,500 mm/s |
| Conveyor Width Adjustment | Automatic |
| OPERATOR INTERFACE | |
| Hardware | LCD Monitor, Mouse & Keyboard |
| Operating System (OS) | Windows 10 |
| Control Method | Industrial PC controlled |
| I/O Interface | SMEMA Standard |
| OPTICAL SYSTEM | |
| Field-of-View (FOV) | 8 mm x 6 mm |
| Fiducial Types | Circle, triangle, square, diamond, cross |
| Fiducial size | 0.5~4.0 mm |
| Vision Methodology | CCD camera look up & down |
| 2D inspection | Max. 100 windows to inspect missing, insufficient, bridging (std.) |
| PRINTING PARAMETERS | |
| Stencil Frame Size (L X W) | Adjustable, 737 mm x 737 mm to 1,100 mm x 950 mm |
| Print Gap (snap-off) | 0~20 mm |
| Printing Table Adjustment Range | X: ±10 mm, Y: ±10 mm/ : ± 2° |
| Print Speed | 5~150 mm/s |
| Squeegee Pressure | 0.5~20kg (program control) |
| Squeegee Type | Std.: Metal, Option: Rubber |
| Squeegee Angle | Std. 60°, Option 45°, 50°, 55° |
| Cleaning System | Auto wet, dry, vacuum (Software select) |
| FACILITIES REQUIREMENT | |
| Power Supply | AC220V ± 10% 50/60Hz |
| Power Consumption | 3kW |
| Air Supply | 4 ~ 6Kgf/cm² |
| Dimension (excluding signal tower) | 1,590 mm (L) x 1,608mm (W) x 1,530 mm (H) |
| Machine Weight | 1,500 kg |
| OPTIONS |
| Stencil Apertures Inspection System |
| SPI Closed-Loop |
| Temperature, Humidity Monitoring & Display |
| External Barcode Scanner for PCB Traceability |
| Handheld Barcode Scanner for stencil, solder paste, squeegee traceability |
